Product Details
Place of Origin: Jiangsu, China
Model Number: DIN571
Payment & Shipping Terms
Minimum Order Quantity: 1000 pieces
Price: $0.02/pieces >=1000 pieces
Finish: |
Plain |
Material: |
Stainless Steel |
Measurement System: |
Metric |
Head Style: |
HEX |
Standard: |
DIN |
Product Name: |
Stainless Steel Hexagon Head Wood Screws DIN571 |
Surface Treatment: |
Plain |
Specification: |
Diameter: 4-20mm,Length: 16mm-200mm. |
Packaging: |
Wood Pallet |
Length: |
3mm-60mm |
Head Type: |
Hex |
Finish: |
Plain |
Material: |
Stainless Steel |
Measurement System: |
Metric |
Head Style: |
HEX |
Standard: |
DIN |
Product Name: |
Stainless Steel Hexagon Head Wood Screws DIN571 |
Surface Treatment: |
Plain |
Specification: |
Diameter: 4-20mm,Length: 16mm-200mm. |
Packaging: |
Wood Pallet |
Length: |
3mm-60mm |
Head Type: |
Hex |

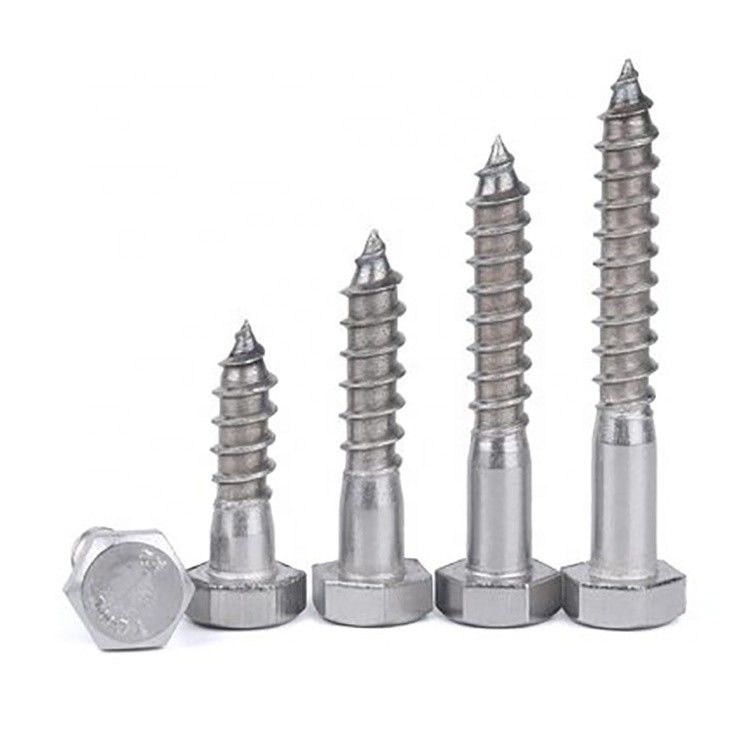

Hexagon head wood screws are fasteners that are designed to be used in wood applications. They have a hexagonal head that can be tightened or loosened with a wrench or pliers. The threads on the screw are designed to grip the wood securely, and the hexagonal head provides a large surface area for the wrench or pliers to grip, making it easier to tighten or loosen the screw. Hexagon head wood screws are available in a variety of sizes and lengths to suit different wood applications. They are commonly used in furniture assembly, carpentry, and woodworking projects.
| Thread specification d |
4 | 5 | 6 | (7) | 8 | 10 | 12 | 16 | 20 | |
| ds | Max | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| Min | 3.52 | 4.52 | 5.52 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 | |
| k | Nominal | 2.8 | 3.5 | 4 | 5 | 5.5 | 7 | 8 | 10 | 13 |
| Max | 3.1 | 3.88 | 4.38 | 5.38 | 5.88 | 7.45 | 8.45 | 10.45 | 13.9 | |
| s | Min | 2.5 | 3.13 | 3.63 | 4.63 | 5.13 | 6.55 | 7.55 | 9.55 | 12.1 |
| Max=Nominal | 7 | 8 | 10 | 12 | 13 | 17 | 19 | 24 | 30 | |
| Min | 6.64 | 7.64 | 9.64 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 | |
| e | Min | 7.5 | 8.63 | 10.89 | 13.07 | 14.2 | 18.72 | 20.88 | 26.17 | 32.95 |
Wood screws are similar to machine screws, but the thread on the screw is a special wood screw thread, which can be directly screwed into a wooden component (or part). The components are fastened together. This connection is also a detachable connection.
We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.
First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.
The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
Q:How can I get a quotation?
A:Kindly provide us your details request (item No, style, logo, size, material, surface treatment, quantity etc.) the more detailed the better, leave us an inquiry or email to us and we will response promptly!
Q:How to get a free sample?
A:We recommend you work with Alibaba Trade Assurance, itis very convenient And T/T, PayPal, Western Union.. are all available.
Q:What's the process of order?
A:Send us Inquiry →get quotation →payment done →open mold and make samples→
deliver you samples or send you pictures of samples for approval→mass production.
Q:When can l expect the customized product to be finished?
A:Sample:7-10 working days (Standard).
Bulk order:20-25 working days(Standard).
If you have any other questions, please feel free to contact us!
